Sparcraft have a big range of hardware and various spare parts to fit on their masts and booms. You will find below a little selection of parts which could be fitted on most common rigs on the market. This is not the complete range as we only selected the most popular products with easy access to related specifications. If you want to look in more depth we suggest you look in the catalogue.
Boom Bales
BOOM BALES PART NUMBER DESCRIPTION ⦰ MM
47501000805 Medium Swiveling bale 8
47501001005 Large Swiveling bale 10
47503000015 Reinforced bale 10
Fixed Padeyes

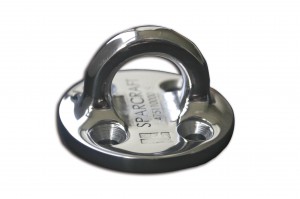

With a 55mm diameter and a SWL of 2000Kg this round fixed padeye can be used on mast bases, in cockpits or as tack attachments on light staysails. Part # 47511000015.
Spectacles
We stock a range of spectacles to divert halyards for Spinnakers or reef lines on masts. The shape was designed in order to fit most mast sections and they can take up to 26mm lines.
SPECTACLES LEADS Part Number Description Max Rope Size
23361432034 Stainless steel Little Spectacle 10mm
23361432024 Stainless steel Middle Spectacle 16mm
23361432024 Stainless steel Big Spectacle 22mm
Sheave Boxes
Light and strong, either in stainless steel, plastic or aluminium, our new sheave boxes are easy to install and supplied with rivets. They can take up to 18mm rope and we can supply templates upon request. If you are working on old sheave boxes cuts we can also supply cover plates for the new ones.
MODEL MATERIAL PART NUMBER BOX DIMENSIONS
A x B x C mm CUT DIMENSIONS
G x H mm CUT TYPE
MAX ROPE SIZE
mm WORK LOAD
da Na
40mm S/steel box 48701 010 405 118,5 x 23 x 95,5 57x19 4 8 1350
60mm S/steel box 48701 010 605 165,5 x 29 x 136,5 83x26 4 12 1800
85mm S/steel box 48701 010 855 196 x 34 x 162 108x30 4 14 2300
110mm S/steel box 48701 011 105 245 x 41,5 x 203,5 133x35,5 4 16 3000
130mm S/steel box 48701 011 305 265,5 x 46 x 219,5 149x42 4 18 3500
8 Plastic 48702 000 015 104 x 28 70 x 24 3 8
10 Single perf. Alloy 48701 060 155 129 x 60 85 x 22 3 10
16 Alloy 48701 000 503 158 x 40 115 x 34 2 16
16 Reinforced Alloy 48701 150 100 158 x 40 115 x 34 2 16
10 Plastic 48703 150 007 115 x 34 43 x 18 1 10
| BOOM BALES | PART NUMBER | DESCRIPTION | ⦰ MM |
|---|---|---|---|
| 47501000805 | Medium Swiveling bale | 8 |
| 47501001005 | Large Swiveling bale | 10 | |
| 47503000015 | Reinforced bale | 10 |
Fixed Padeyes
With a 55mm diameter and a SWL of 2000Kg this round fixed padeye can be used on mast bases, in cockpits or as tack attachments on light staysails. Part # 47511000015.
Spectacles
We stock a range of spectacles to divert halyards for Spinnakers or reef lines on masts. The shape was designed in order to fit most mast sections and they can take up to 26mm lines.
| SPECTACLES LEADS | Part Number | Description | Max Rope Size |
|---|---|---|---|
| 23361432034 | Stainless steel Little Spectacle | 10mm |
| 23361432024 | Stainless steel Middle Spectacle | 16mm | |
| 23361432024 | Stainless steel Big Spectacle | 22mm |
Sheave Boxes
Light and strong, either in stainless steel, plastic or aluminium, our new sheave boxes are easy to install and supplied with rivets. They can take up to 18mm rope and we can supply templates upon request. If you are working on old sheave boxes cuts we can also supply cover plates for the new ones.
| MODEL | MATERIAL | PART NUMBER | BOX DIMENSIONS A x B x C mm | CUT DIMENSIONS G x H mm | CUT TYPE | MAX ROPE SIZE mm | WORK LOAD da Na |
|
|---|---|---|---|---|---|---|---|---|
| 40mm | S/steel box | 48701 010 405 | 118,5 x 23 x 95,5 | 57x19 | 4 | 8 | 1350 |
| 60mm | S/steel box | 48701 010 605 | 165,5 x 29 x 136,5 | 83x26 | 4 | 12 | 1800 |
| 85mm | S/steel box | 48701 010 855 | 196 x 34 x 162 | 108x30 | 4 | 14 | 2300 |
| 110mm | S/steel box | 48701 011 105 | 245 x 41,5 x 203,5 | 133x35,5 | 4 | 16 | 3000 |
| 130mm | S/steel box | 48701 011 305 | 265,5 x 46 x 219,5 | 149x42 | 4 | 18 | 3500 |
| 8 | Plastic | 48702 000 015 | 104 x 28 | 70 x 24 | 3 | 8 | ||
| 10 Single perf. | Alloy | 48701 060 155 | 129 x 60 | 85 x 22 | 3 | 10 | ||
| 16 | Alloy | 48701 000 503 | 158 x 40 | 115 x 34 | 2 | 16 | ||
| 16 Reinforced | Alloy | 48701 150 100 | 158 x 40 | 115 x 34 | 2 | 16 | ||
| 10 | Plastic | 48703 150 007 | 115 x 34 | 43 x 18 | 1 | 10 |
