Wichard is launching a new range of fixed diamond padeyes this month. Available in 3 sizes, with round or square finishing, they adapt to any use from ropes and webbings, to stainless steel fastenings. Forged in Duplex grade stainless steel, the new padeyes have a great mechanical resistance vs corrosion ratio, and the SWL are about 10% higher than those made out of 316L stainless steel. The 3 sizes – 5, 6 and 8mm – retrofit the footprint of any other brands, especially the discontinued range of GIBB padeyes.
The full range will be available in Australia later on this month, find retail pricing below.

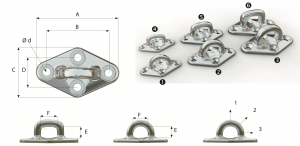

Part # | RRP $AUD | A mm | B mm | C mm | D mm | Ø d mm | E mm | F mm | W.L.1 Kg | W.L.2 Kg | W.L.3 Kg | B.L.1 Kg | B.L.2 Kg | B.L.3 Kg | Weight Kg | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | 6644 | $46.70 | 60 | 46 | 38 | 24 | M5 | 14.5 | 19 | 1200 | 1100 | 1100 | 3200 | 3000 | 3000 | 0.059 |
2 | 6645 | $63.05 | 79 | 60 | 50 | 32 | M6 | 18.5 | 22 | 2900 | 2600 | 2400 | 7800 | 6900 | 6300 | 0.143 |
3 | 6646 | $86.50 | 98 | 73 | 59 | 35 | M8 | 22 | 27 | 4200 | 4200 | 4100 | 11200 | 11200 | 11000 | 0.250 |
4 | 6654 | $46.70 | 60 | 46 | 38 | 24 | M5 | 12 | 19 | 1200 | 1200 | 1100 | 3200 | 3200 | 3000 | 0.059 |
5 | 6655 | $63.05 | 79 | 60 | 50 | 32 | M6 | 15.5 | 22 | 2700 | 2600 | 2400 | 7300 | 6900 | 6300 | 0.145 |
6 | 6656 | $86.50 | 98 | 73 | 59 | 35 | M8 | 19.5 | 27 | 4300 | 4300 | 4100 | 11600 | 11600 | 11000 | 0.255 |
